Using The Public API

This scene contains a lot of buttons, each of which calls one of the public methods on the OrbitalCameraSystem.

You can read a detailed explanation of the public API here.

Note

Only the methods that take a float parameter can be executed directly from the button's On Click list. Methods that take a Vector3 parameter needs to be called via a custom script.

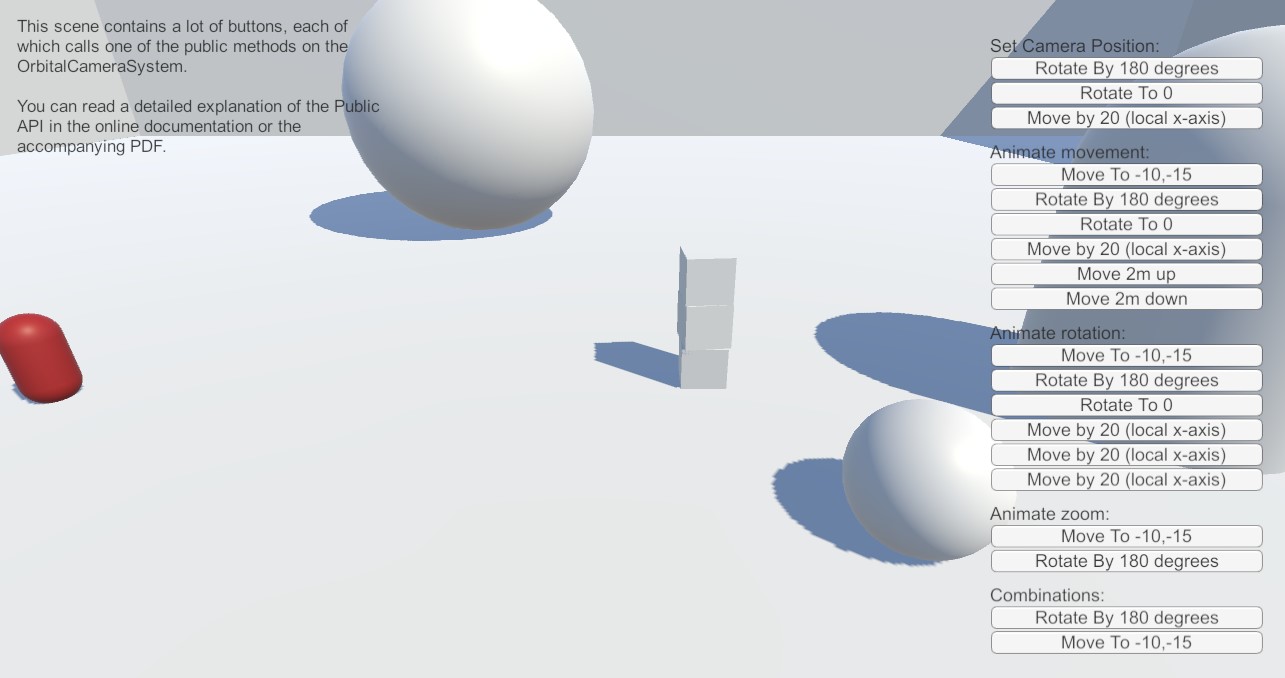

Screenshot from the API example scene

Setting the camera position

The camera position can be set (instantly, without any animation) with the following 4 methods:

  • SetPosition (Vector3)
  • SetRotation (float)
  • SetTilt (float)
  • SetZoom (float)

Animations

The camera can be animated with the following methods.

Movement

There's 4 different move methods available:

  • MoveCameraBy (Vector3)
  • MoveCameraByLocal (Vector3)
  • MoveCameraTo (Vector3)
  • MoveCameraUp (float)

Rotation

There's 6 different rotation/tilt methods available:

  • RotateAndTiltCameraBy (Vector2)
  • RotateAndTiltCameraTo (Vector2)
  • RotateCameraBy (float)
  • RotateCameraTo (float)
  • TiltCameraBy (float)
  • TiltCameraTo (float)

Zoom

There's 2 different zoom methods available:

  • ZoomCameraBy (float)
  • ZoomCameraTo (float)

Combinations

You can combine the animations, and play several at the same time. But naturally only one animation from each category can be run simulaneously. You can thus animate the movement, rotation, tilt and zoom; all at the same time.

Locking on to a target

If you need the camera to follow a target, you can use the Special Feature methods: SetLockOnTarget and RemoveLockOnTarget.

Note

This will disable all the movement inputs, and the player will only be able to rotate, tilt and zoom the camera.
